Deep Drawing 63 Ton 4 Column Hydraulic Press machine specifications:
| Model | 63t | 63t-K |
| Max.Liquid pressure (Mpa) | 25 | 25 |
| Slide Stroke (mm) | 400 | 400 |
| Max opening height (mm) | 700 | 700 |
| Working table size (mm) | 520x520 | 520x520 |
| Descent speed (mm/s) | 54 | 80 |
| Working speed (mm/s) | 15-24 | 15-22 |
| Return speed (mm/s) | 46 | 80 |
| Motor power (kw) | 5.5 | 5.5 |
| Displacement Oil Pump (mL/r) | 25 | 25 |
| Ejecting force (ton) | 20 | 20 |
| Ejecting stoke (mm) | 200 | 200 |

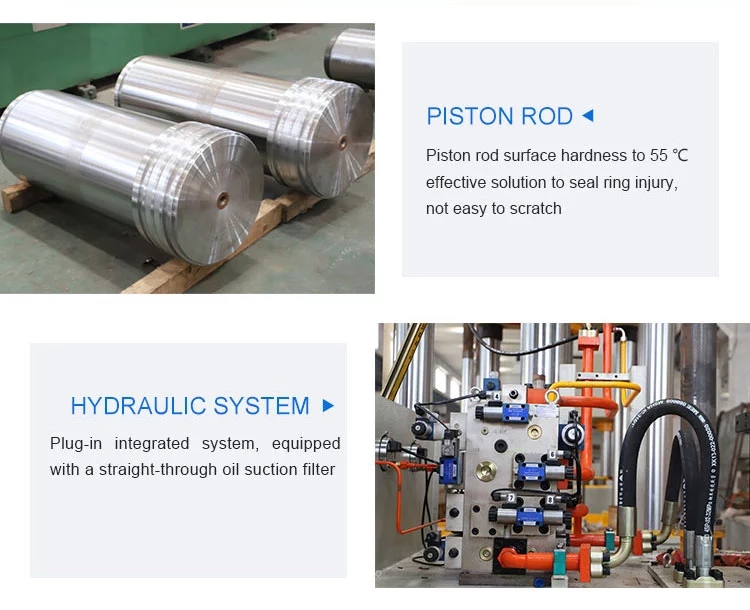

Product details:
Tengzhou Dingrun Forging Machinery Plant
