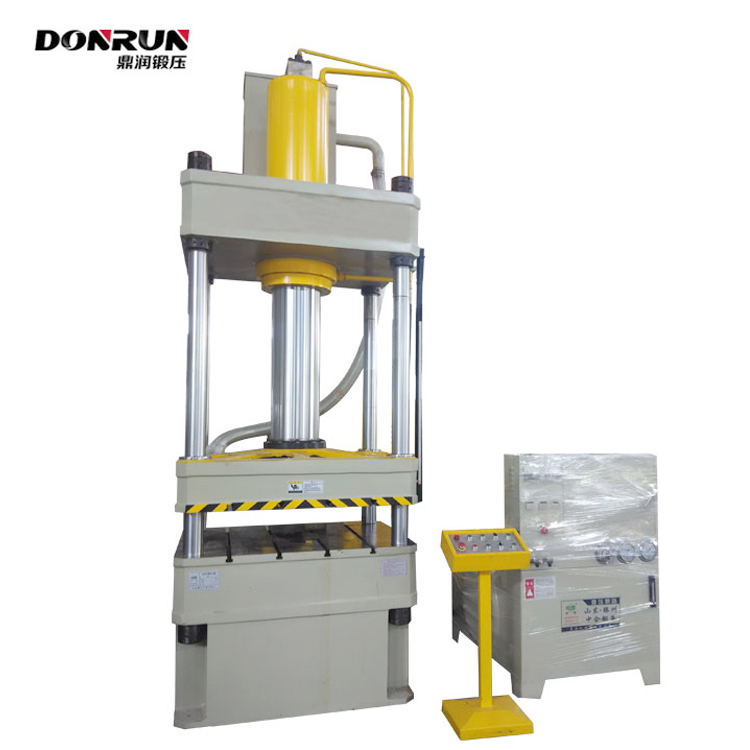

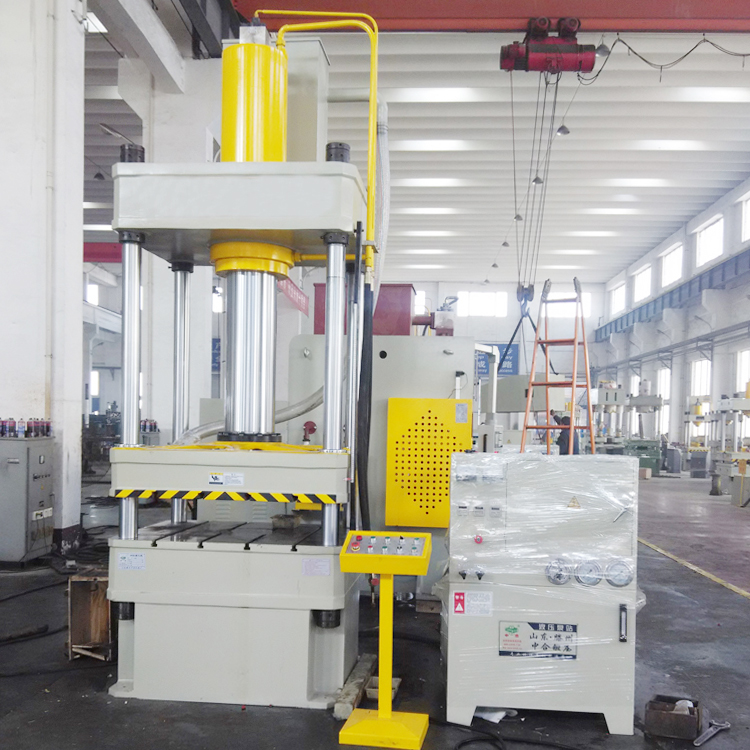

Four column hydraulic press 200 ton for metal sheet drawing
specifications:| Model | 200t-C | 200t-CK |
| Max.Liquid pressure (Mpa) | 25 | 25 |
| Slide Stroke (mm) | 400 | 600 |
| Max opening height (mm) | 800 | 1000 |
| Working table size (mm) | 1000x1000 | 1000x1000 |
| Descent speed (mm/s) | 30 | 100 |
| Working speed (mm/s) | 8-12 | 6-12 |
| Return speed (mm/s) | 20 | 100 |
| Motor power (kw) | 7.5 | 7.5 |
| Displacement Oil Pump (mL/r) | 40 | 40 |
| Ejecting force (ton) | 50 | 50 |
| Ejecting stoke (mm) | 250 | 250 |
Tengzhou Dingrun Forging Machinery Plant
