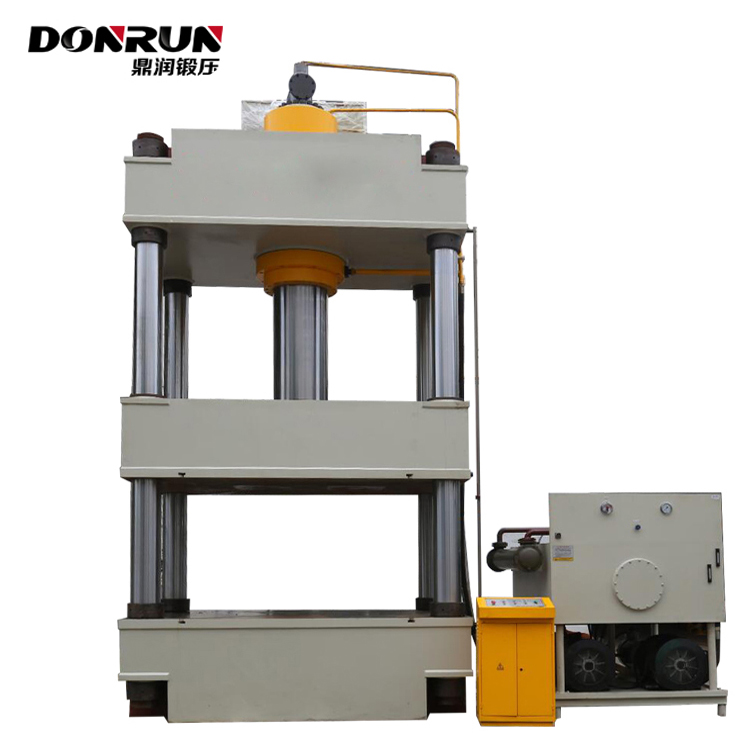

Four column 800 Ton hydraulic press specifications:
| Model | YQ32-800T | |
| Liquid Working Pressure (Mpa) | 25 | |
| Master Cylinder Stroke (mm) | 800 | |
| Max. Opening Height (mm) | 2350 | |
| Lifting Cylinder (T) | 120*2 | |
| Lifting Cylinder Stroke(mm) | 550 | |
|
Working Table Size(mm*mm) |
Left to right | 1500 |
| Front to behind | 1500 | |
| Descent Speed (mm/s) | 225 | |
| Working Speed (mm/s) | 6-15 | |
| Return Speed (mm/s) | 130 | |
| Motor Power(KW) | 37*2 | |
| Machine Dimension(m) | 2160*1820*5600 | |
| Weight(T) | 35 | |
Products details:
Dingrun 800 ton hydraulic press usage:
It is used in metal stamping, steel punching, turning,cold extrusion and other stamping rocesses.
It can also be used for calibration,powder products, plastic products, and insulation materials.
Ultra High Pressure:
The pressure output is stable and the stamina is sufficient.
Super performance:
Compared to the product China manufacturer itself, super low price, low cost.
Super custom:
With the user's needs continue to improve hydraulic press machine design, accumulated experience, to achieve perfect custom.
Super sturdy:
Fine materials, patiently repeated processing, fully craft support to ensure the strength of the structure
Ultra quiet working:
Pressure system to optimize the upgrade, and finally close to perfect, remove your worries.
No leaking:
Precision mechanical combination, the perfect overall cooperation.
Super performance:Compared to the product China manufacturer 800 ton hydraulic press itself, super low price, high cost.
Super sturdy:Fine materials, patiently repeated processing, fully craft support to ensure the strength of the four column hydraulic press structure
Super customized:With the user's needs continue to improve the 1000 ton hydraulic press design, accumulated experience, to achieve perfect custom.
four column hydraulic press adopts visual operation interface, graphical operation and guidance, and it is very simple to get started.
In terms of man-machine interaction, 1000 ton hydraulic press fully takes into account the specific requirements for use, manual, semi-automatic, fully automatic control, free to switch at any time.
Nominal pressure, opening height, slider stroke, operating speed, China manufacturer 800 ton hydraulic press worktable size, length and width of the fuselage, can be customized according to your special requirements.
Tengzhou Dingrun Forging Machinery Plant
