Specifications:

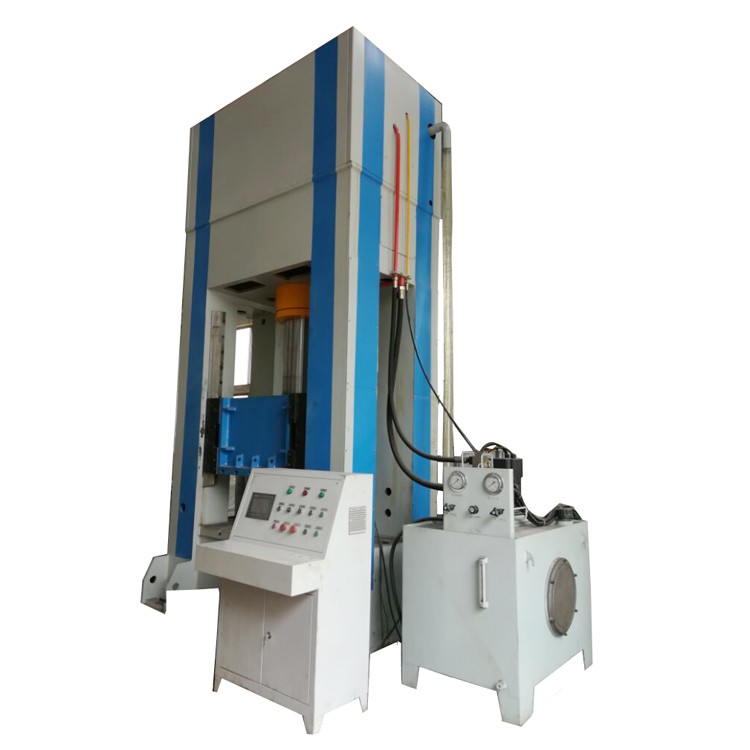

H frame gantry hydraulic press can be customized different tonnage different workstations according to customer request.
The machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine. Machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.
| Model | 315t |
| Max.Liquid pressure (Mpa) | 25 |
| Slide Stroke (mm) | 800 |
| Max opening height (mm) | 1250 |
| Working table size (mm) | 1260x1200 |
| Descent speed (mm/s) | 100 |
| Working speed (mm/s) | 6-15 |
| Return speed (mm/s) | 80 |
| Motor power (kw) | 22 |
| Displacement Oil Pump (mL/r) | 80 |
| Ejecting force (ton) | 63 |
| Ejecting stoke (mm) | 300 |
