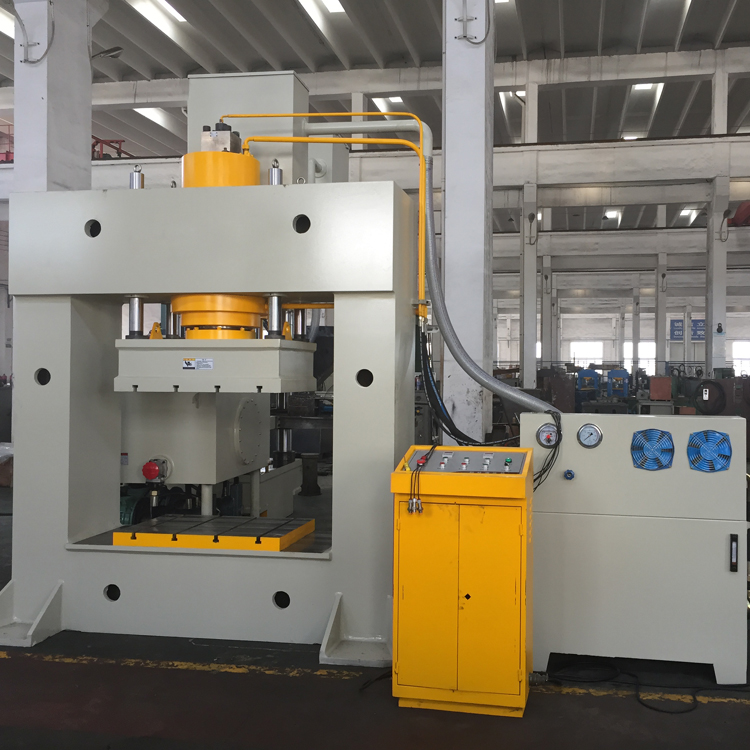

200 ton gantry hydraulic cold press machine application in the machinery industry disassembly,forming, straightening,
stretching,sheet metal forming the suppression work,and can be a one-time split riveting forming,is the modern auto
repair industry essential pressure equipment.
Specifications:
| Model | 120T | 160T | 200T | |
| Nominal pressure KN | 1200 | 1600 | 2000 | |
| Max opening height mm | 1100 | 1300 | 1500 | |
| Slide stroke mm | 500 | 500 | 600 | |
|
Effective worktable size (mm*mm) |
L-F | 1200 | 1400 | 1700 |
| F-B | 600 | 800 | 1200 | |
| Motor KW | 5.5 | 7.5 | 7.5 | |
| Machine weight kg | 2000 | 2500 | 3000 | |
| Packing size mm | 1400*600*2300 | 1900*1000*3000 | 2100*1200*2800 | |
| Solid tire size inch | 8"9"10"11"12"15"20"24"25"(standard with 5 sets mould) | |||
