| Model | 2000 Ton |
| Slide Stroke (mm) | 900 |
| Max opening height (mm) | 1600 |
| Working table size (mm) | 2000x2000 |
| Descent speed (mm/s) | 120 |
| Working speed (mm/s) | 5-10 |
| Return speed (mm/s) | 85 |
| Motor power (kw) | 90 |
| Displacement Oil Pump (mL/r) | 250x2 |
| Ejecting force (ton) | 250 |
| Ejecting stoke (mm) | 450 |
Characteristic:

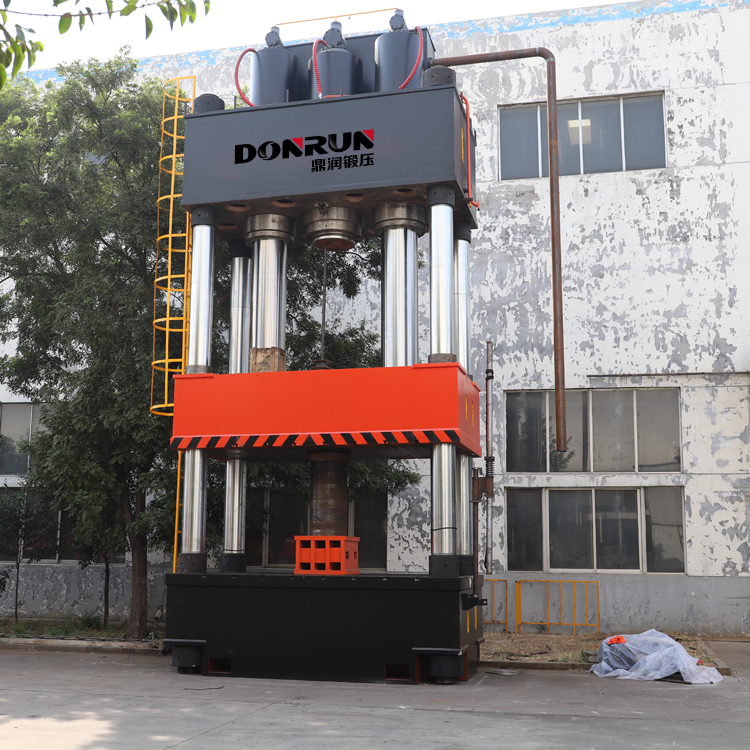

Deep drawing press hydraulics for four columns hydraulic pressing machine 2000 ton structures,Specially made large countertops according to
customer needs,different tonnage.Hydraulic control adopts to insert set valve integrated system, decrease let out Point , Movement reliability,
durable and long life span ,It is constant pressure to realize with calm in the first place and calm procedure
two develop technology, have to insure press the function of delay time , The route of working pressure may be regulated
in assigned scope,adopt buttons for centralized control,Can realization manual,Semi-automatic,automatic 3 operate form.
Tengzhou Dingrun Forging Machinery Plant
