Areas of application & Specifications
Single column c-frame hydraulic press capacity 100t price for sale for a wide range of applications, mainly used in shaft parts, profiles of the correction and press-fit, bending of sheet metal parts, press fit, plastic, simple parts of the stretch plastic products, machine tools, internal combustion engines, single column c-frame hydraulic press capacity 100t price for sale with automotive motor and other industries, there are 2.5 tons of 5 tons of 6.3 tons and other small tonnage single column hydraulic press and 20 tons and hundreds of tons can be customized machine.
Our company's single column c-frame hydraulic press capacity 100t price for sale the fuselage for the C-type single-column structure, the use of all-steel CO2 welding, welding after tempering aging treatment to ensure that the body never deformation. Hydraulic system is located in the fuselage, beautiful appearance, easy to operate, single column c-frame hydraulic press capacity 100t price for sale can widen the scope of work, the use of three-dimensional space extended hydraulic cylinder stroke (optional)
|

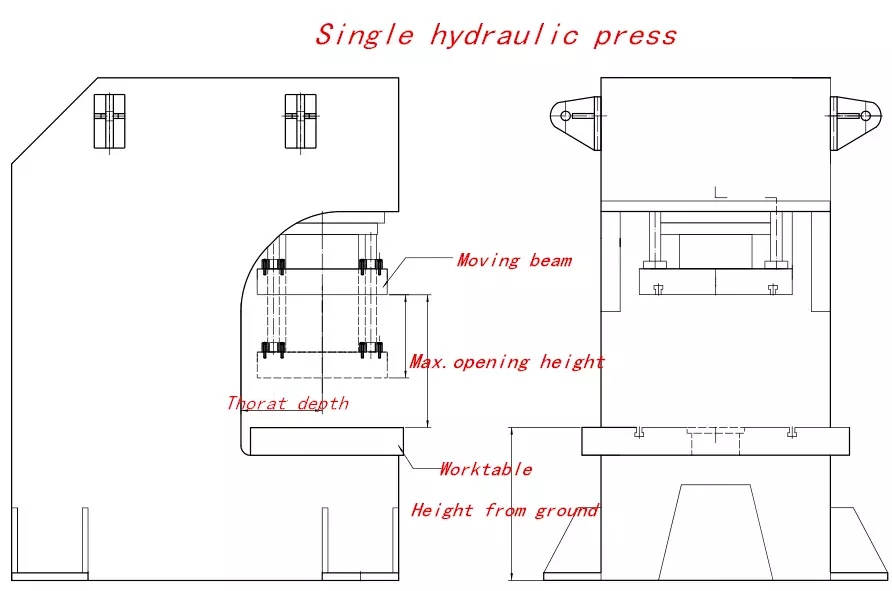

Model |
100t | |
| Maintenance type | Industrial type | |
| Max liquid working pressure (Mpa) | 25 | 25 |
| Slide stroke (mm) | 360 | 600 |
| Throat depth (mm) | 260 | 350 |
| Max opening height (mm) | 600 | 1000 |
| Worktable size (mm) | 500x700 | 800x670 |
| The size of the upper table (mm) | - | 600x600 |
| Descent speed (mm/s) | 7.5 | 55 |
| Return speed (mm/s) | 10 | 48 |
| Motor power (kw) | 5.5 | 7.5 |
| Net weight (kg) | 2200 | 2300 |
Product details:
