YQ41 series capacity 63 ton 100t C frame hydraulic press applictaion:
YQ41 series capacity 63 ton 100t c-frame hydraulic pressfor a wide range of applications, mainly used in shaft parts, profiles of the correction and press-fit, bending of sheet metal parts, press fit, plastic, simple parts of the stretch plastic products, machine tools, internal combustion engines, YQ41 series capacity 63 ton 100t c-frame hydraulic press .Automotive motor and other industries, there are 2.5 tons of 5 tons of 6.3 tons and other small tonnage single column hydraulic press and 20 tons and hundreds of tons can be customized machine.
Specification:
|
Model |
63t | 100t | ||
| Maintenance type | Industrial type | Maintenance type | Industrial type | |
| Max liquid working pressure (Mpa) | 31.5 | 25 | 25 | 25 |
| Slide stroke (mm) | 360 | 360 | 360 | 600 |
| Throat depth (mm) | 260 | 260 | 260 | 350 |
| Max opening height (mm) | 600 | 600 | 600 | 1000 |
| Worktable size (mm) | 450x600 | 450x600 | 500x700 | 800x670 |
| The size of the upper table (mm) | - | 380x380 | - | 600x600 |
| Descent speed (mm/s) | 12 | 53 | 7.5 | 55 |
| Return speed (mm/s) | 16 | 42 | 10 | 48 |
| Motor power (kw) | 5.5 | 5.5 | 5.5 | 7.5 |
| Net weight (kg) | 1700 | 1800 | 2200 | 2300 |
| Note :industrial type hydraulic press has upper movable worktable ,upper and under worktable has T-slot ,making convenient to fix the mold ,with the advantage of high speed ,high efficiency ,good guiding ,pressure maintaining ,settle pressure and settle travel etc . | ||||

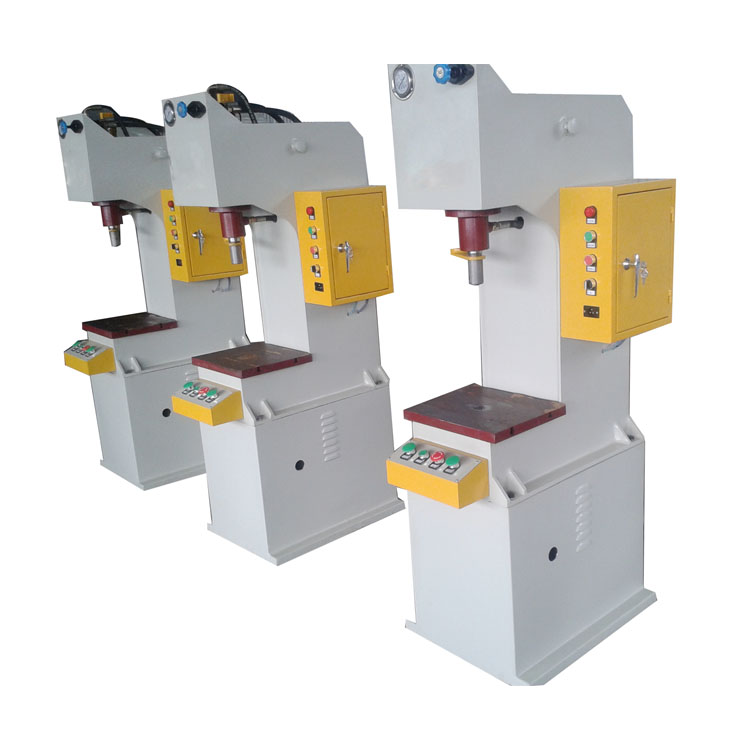

Product details:
Tengzhou Dingrun Forging Machinery Plant
