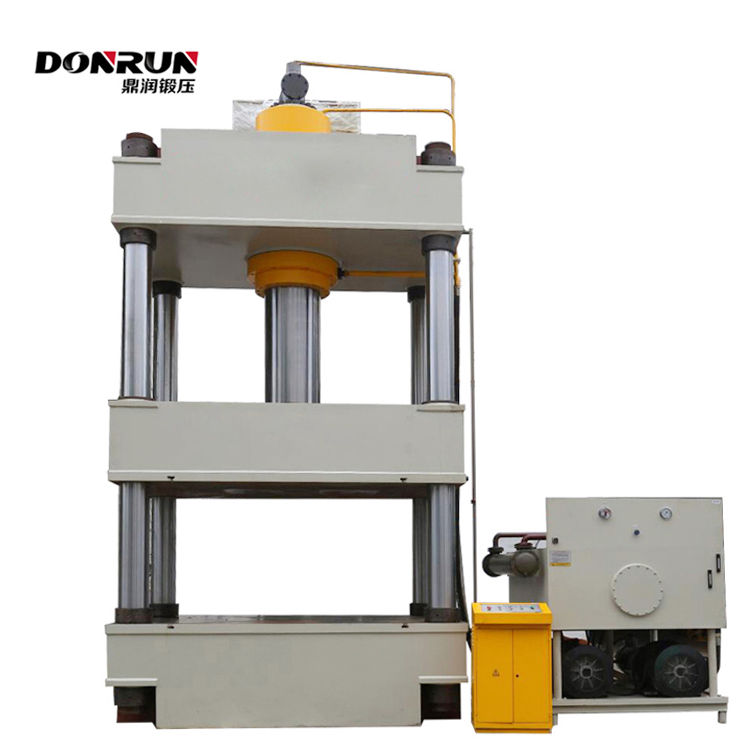

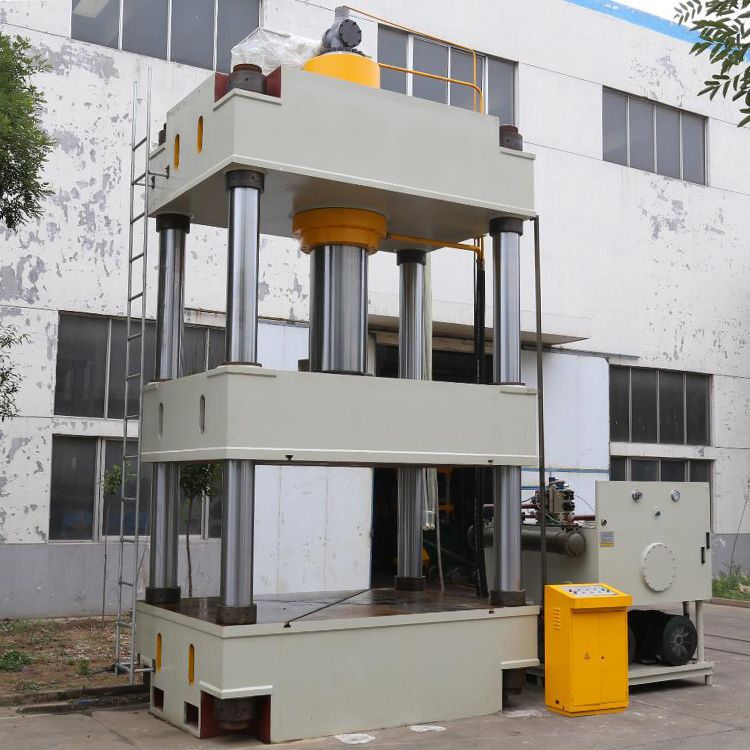

Specifications:800T Four Columns Customized Hydraulic Press Machine
| Model | YQ32-800T | |
| Liquid Working Pressure (Mpa) | 25 | |
| Master Cylinder Stroke (mm) | 800 | |
| Max. Opening Height (mm) | 2350 | |
| Lifting Cylinder (T) | 120*2 | |
| Lifting Cylinder Stroke(mm) | 550 | |
|
Working Table Size(mm*mm) |
Left to right | 1500 |
| Front to behind | 1500 | |
| Descent Speed (mm/s) | 225 | |
| Working Speed (mm/s) | 6-15 | |
| Return Speed (mm/s) | 130 | |
| Motor Power(KW) | 37*2 | |
| Machine Dimension(m) | 2160*1820*5600 | |
| Weight(T) | 35 | |
Accessories for your choice
Punching cushioning installation Mixing installation(hydraulic or Mechanical) Movement working table Touching industry display screen Cooling installation PLC programmable control system Light curtain Safety Protector can be ordered various types of under cylinder Fluctuate slideway and rolling bracket for changing mould 20t—2000T can be produced according to customer`s requirement.
Finished products:
Tengzhou Dingrun Forging Machinery Plant
