Specifications

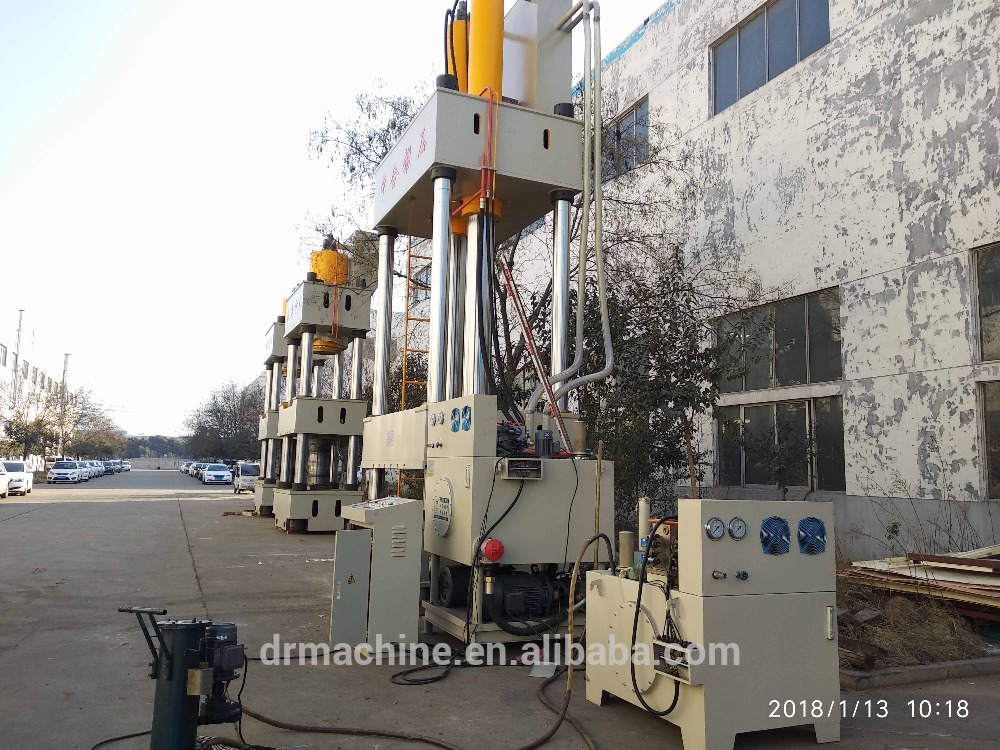

four pillars 1000 ton hydraulic press machine uses for workshop, this YQ32 series hydraulic press machine ,Custom-made bigger table ,different ton hydraulic press machine is available .

four pillars 1000 ton hydraulic press machine uses for workshop applies to plasticity material suppress technology, for instance : punching ,bend ,flange thin stretch etc. four pillars 1000 ton hydraulic press machine uses for workshop can also be engaged in rectification ,press fitting ,the suppress and shaping of plastic products and power production .

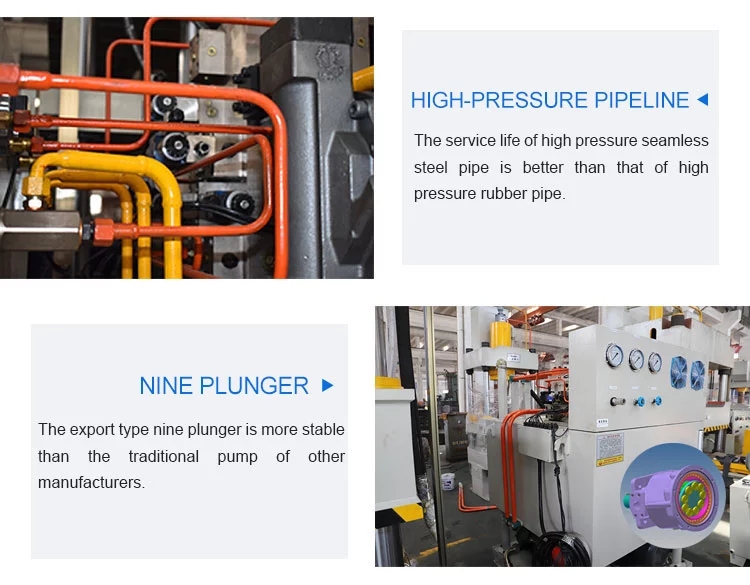

four pillars 1000 ton hydraulic press machine uses for workshop, economical and practical ,hydraulic control adopts to insert set valve integrated system ,decrease let out point ,movement reliability ,durable and long life span. four pillars 1000 ton hydraulic press machine uses for workshop is constant pressure to realize with calm in the first place and calm procedure two develop technology, four pillars 1000 ton hydraulic press machine uses for workshop have to insure press the function of delay time. The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control , four pillars 1000 ton hydraulic press machine uses for workshop can realize 3 kinds operation forms for manual ,semi-automatic ,automatic .

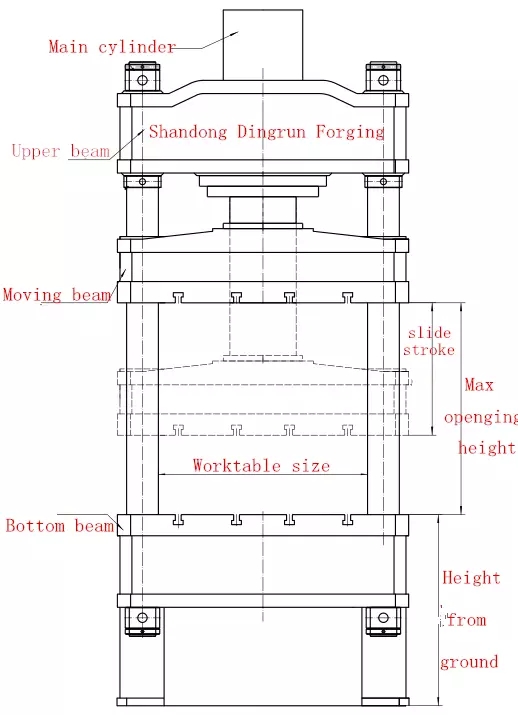

Model	1000t	1250t	1600t
Max.Liquid pressure (Mpa)	25	25	25
Slide Stroke (mm)	900	900	900
Max opening height (mm)	1500	1600	1600
Working table size (mm)	1500x1500	1700x1600	2000x1600
Descent speed (mm/s)	100	120	120
Working speed (mm/s)	6-12	5-10	4-8
Return speed (mm/s)	80	70	60
Motor power (kw)	37x2	37x2	37x2
Ejecting force (ton)	125	200	200
Ejecting stoke (mm)	350	450	450

Four Pillars 1000 Ton Hydraulic Press Machine Uses For Workshop characteristics：

four pillars 1000 ton hydraulic press machine uses for workshop, this YQ32 series hydraulic press machine ,Custom-made bigger table ,different ton hydraulic press machine is available .

four pillars 1000 ton hydraulic press machine uses for workshop applies to plasticity material suppress technology, for instance : punching ,bend ,flange thin stretch etc. four pillars 1000 ton hydraulic press machine uses for workshop can also be engaged in rectification ,press fitting ,the suppress and shaping of plastic products and power production .

four pillars 1000 ton hydraulic press machine uses for workshop, economical and practical ,hydraulic control adopts to insert set valve integrated system ,decrease let out point ,movement reliability ,durable and long life span. four pillars 1000 ton hydraulic press machine uses for workshop is constant pressure to realize with calm in the first place and calm procedure two develop technology, four pillars 1000 ton hydraulic press machine uses for workshop have to insure press the function of delay time. The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control , four pillars 1000 ton hydraulic press machine uses for workshop can realize 3 kinds operation forms for manual ,semi-automatic ,automatic .
