315T 500T salt brick powder compacting hydraulic press _Tengzhou Dingrun Hydraulic Machinery Factory

315T 500T salt brick powder compacting hydraulic press

dingrun forging hydraulic press machine model:

YQ32-100T YQ32-150T YQ32-200T YQ32-250T

YQ32-315T YQ32-500T YQ32-630T YQ32-800T

YQ32-1000T YQ32-1250T YQ32-1600T YQ32-2000T

The main performance characteristics:

1. The pressing process of the hydraulic press for plastic, such as stamping, bending, flanging, drawing etc..

2. Can be engaged in correction, compression, plastic dingrun forging hydraulic press machines and powder dingrun forging hydraulic press machines.

Salt brick powder compacting hydraulic press specifications:

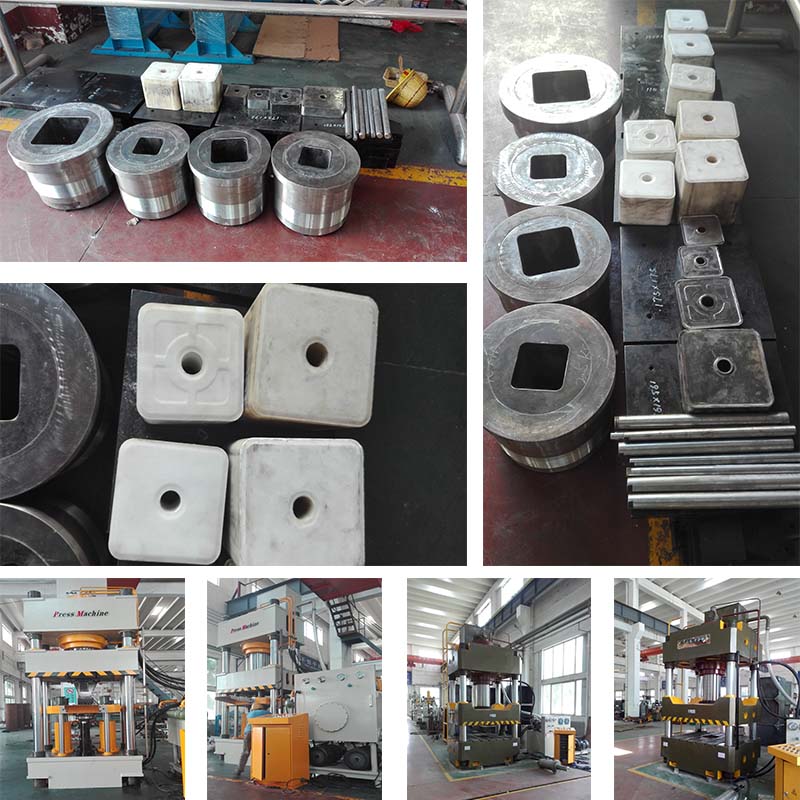

four columns hydraulic press for 2kg ~ 20kg salt bock
machine parameter	unit	315T	500T	630T	800T
liquid working pressure	Mpa	25	25	25	25
master cylinder stroke	mm	500	500	500	800
opening height	mm	1260	1615	1300	2350
lifting cylinder	T	30*2	200*2	200*2	120*2
lifting cylinder stroke	mm	400	350	400	550
worktable size	mm	2000*2000	1200*2000	1200*1200	1500*1500
descent speed	mm/s	250	300	220	225
working speed	mm/s	20~20	12~24	20~20	6~15
return speed	mm/s	130	220	140	130
motor powder	KW	22	22*2	22*2	37*2
weight	T	20	16	20	35

What difference do you have in licking salt block hydraulic press?

As a professional manufacturer speciallized in hydraulic press machine R & D,

Not only mass production,

but also based on the actual needs of customers, with the greatest sincerity and standards to design the most appropriate product solutions.

In addition to the regular tools of lathes, milling machines, planers, grinders, drilling machines, boring machines,

<1,

An expensive automatic CNC precision machining center, only dedicated in two Top China manufacturer hydraulic press machine for salt bock forming cylinder flange parts each day,Unique craft.

<2,

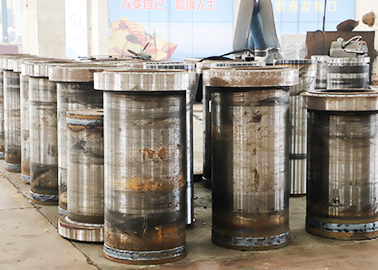

Professional intermediate frequency quenching furnace,the longest can be processed as long as 20 meters of licking salt block hydraulic press steel column,
a substantial increase in hardness after quenching , the vertical hydraulic press machinery surface of the cylinder shell anti scratch, anti impact.

<3,

Best precision grinder of China, grinding the China manufacturer hydraulic press machine for salt bock forming piston rod and the cylinder after quenching,and then chrome antirust processing,
although more time-consuming,but can make hydraulic press machine for salt bock forming work more perfectly fit together,
to avoid the deviation of the data, Surface scratches, oil leaking problems, we are willing to pay for it.

<4,

Worktable plane processing with grinding machine,in order to ensure the smoothness and parallelism of the licking salt block hydraulic press work table,
refused to simply use milling machine processing.
