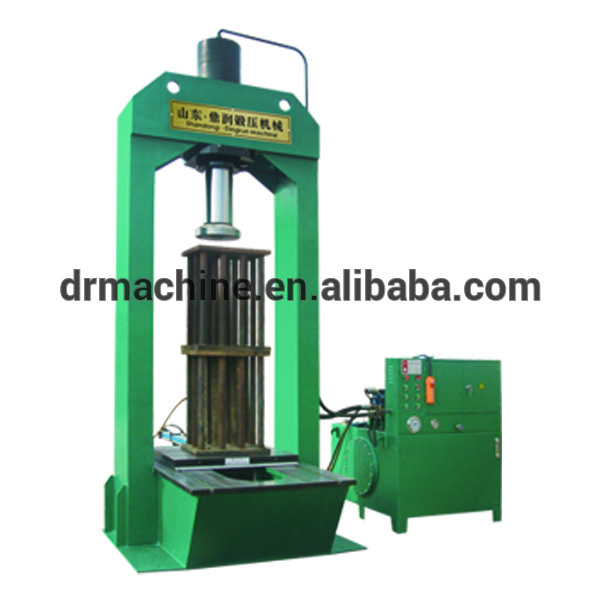

Portal frame H type small shop press 60 ton _Tengzhou Dingrun Hydraulic Machinery Factory

Portal frame H type small shop press 60 ton specifications:

portal frame hydraulic press machine hydraulic shop press 60 ton can be customized different tonnage different workstations according to customer request.

portal frame hydraulic press machine hydraulic shop press 60 ton, the machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine.Portal frame hydraulic press machine hydraulic shop press 60 ton ,machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.

Model	YM-60tA	YM-60tB
Max liquid working pressure (Mpa)	30	30
Stroke (mm)	200	200
Span length (mm)	500	500
Working table size (mm)	400x460	400x460
Motor power (kw)	3	5.5
Displacement oil pump (ml/r)	5	10
Descent speed (mm/s)	6	12
Return speed (mm/s)	8	16

Applications:

Portal frame hydraulic press machine hydraulic shop press 60 ton ,the product is suitable for metal and non-metallic materials, the pressing process can also be used for plastic molding of the material. For example, watches, metal products, bicycles, motorcycles, tableware, electrical appliances, rubber, ceramics, powder metallurgy, etc.

Portal frame H type small shop press 60 ton Features:

Longmen hydraulic press is also called gantry hydraulic press, frame type hydraulic press.The tear open outfit, molding is widely used in machinery industry, straightening, stretching, sheet metal forming of work, and Angle of points of tooth is one-time cold riveting molding pressure equipment for automobile repair industry.

1.Gantry frame structure adopts profile steel with high intensity and without deformation.

2.The cutting head can automatically move horizontally,with excellent operating visual field and safe and reliable opetation.

3.The hydraulic system specially designed is featured by low noise and low oil comsumption.

4.The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.

5.The movement of cutting head is controllde by automatic speed variation to realize flexible movement with high speed and accurate pasitioning and without impact.

6.Differential oil way is adopted to allow rapid and convenient cutting.

7.Products of special specifications from 5-500T can be customized.

Machine configuration:

1.PLC control

The press adopts Omron or DELIXI PLC with high stability and longer service life.

2.Hydraulic overload protected

Hydraulic overload protected pump is used to protect the press and the die if the machine is overloaded. youcan reset the overload with the switch on the touch screen easily.
